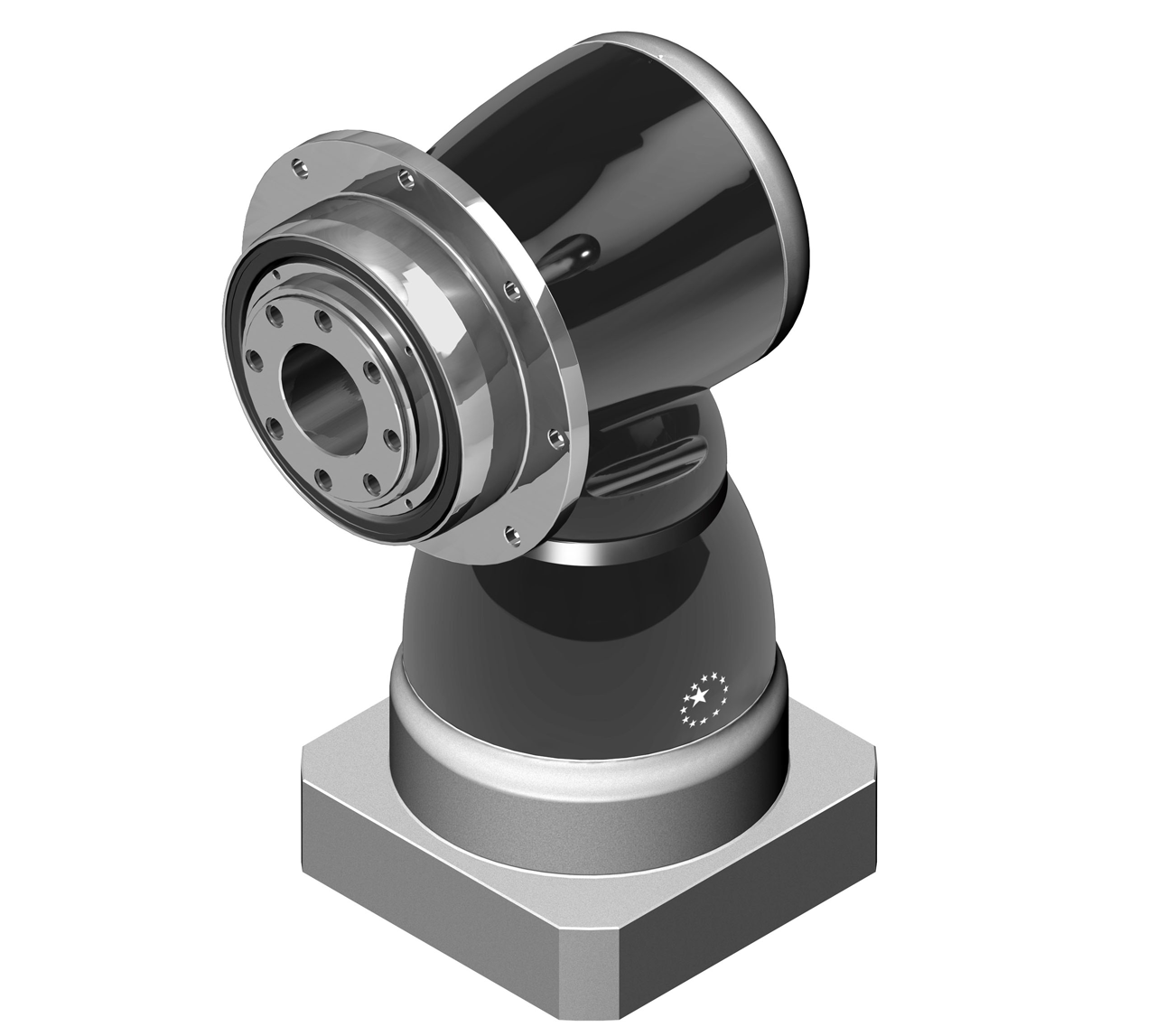

KH-Series High Precision Hypoid Gearboxes

The Apex KH series has a 90° input via a hypoid gear set. It features an extremely short, rigid housing and full compatibility to any motor. A high torque, low backlash COMPACT design provides superior accuracy, excellent radial load capability and high efficiency right angle drive gearbox with no direction reversal through the gearbox. Output flange according to ISO 9409
