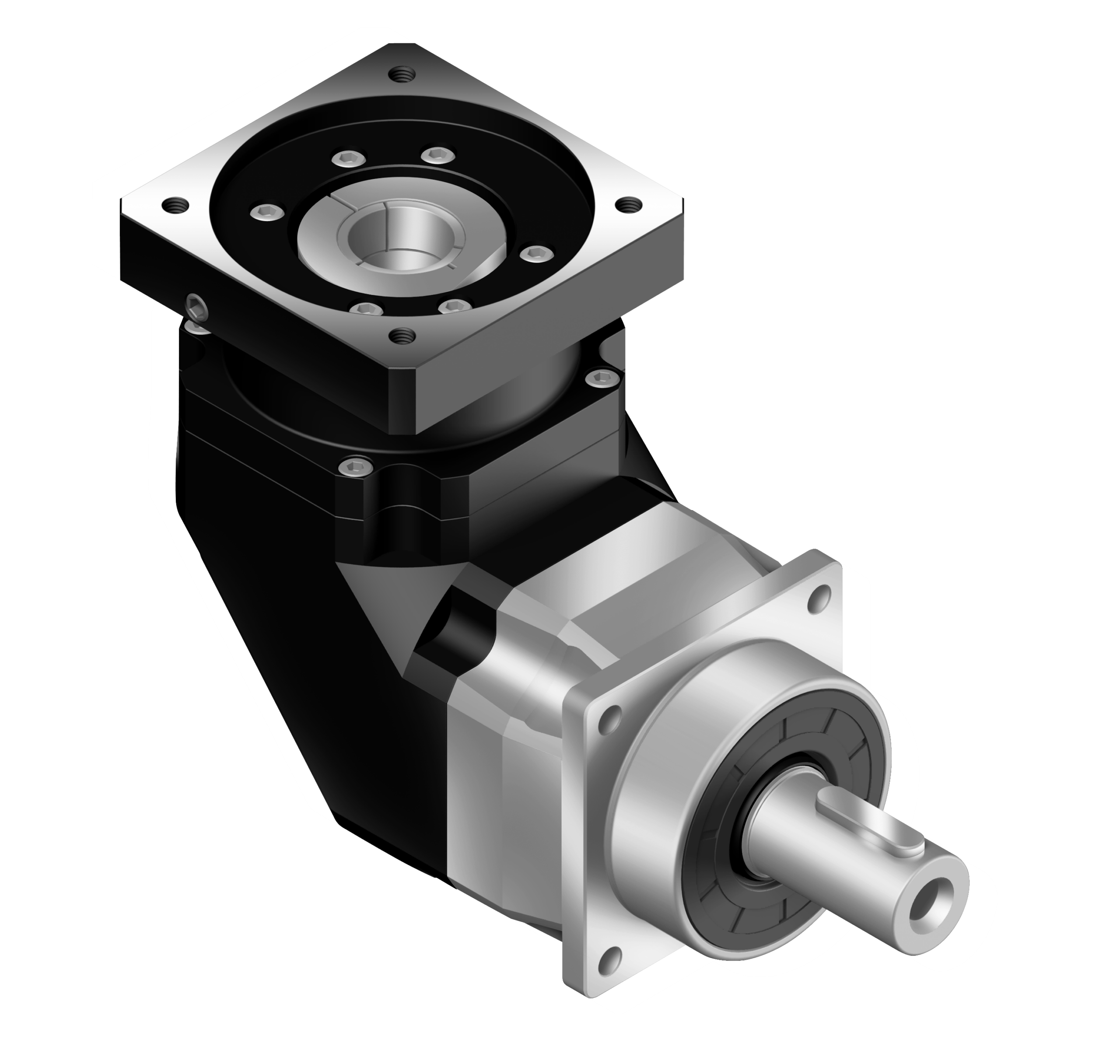

AFXR-Series High Precision Planetary Gearboxes

$50.00

The Apex AFXR series has a 90° input via helical bevel gear. It features an extremely short, light yet rigid housing and full compatibility with standard motor adapters. Highest Precision, Highest Torque and Quiet Operation are provided by 100% optimized Helical Gearing. Low friction bearings and input and output sealing provide lower heat generation and lowered startup / no load running torque.

NEW! – Expanded Ratios -12/16/28/32/48/64 and Widened Mounting Capability with AFR100A and AFR140A

SKU: AFXR Category: Right-Angle Planetary Gearboxes

Description

Output torque
T2N : 9 Nm – 2000 Nm
Ratios
1-stage :3/4/5/6/7/8/9/10/14/20
2-stage :
12/15/16/20/25/28/30/32/35/40/45/48/50/60/64/70
80/90/100/120/140/160/180/200*Only AFXR042 2-stage offers 15,20 option.
Low backlash
1-stage : ≤2arcmin / ≤4arcmin / ≤6arcmin
2-stage : ≤4arcmin / ≤7arcmin / ≤9arcmin
high efficiency
1-stage :≧ 95%
2-stage :≧ 92%
Easy mount
Low Noise
