AFH-Series High Precision Planetary Gearboxes

$50.00

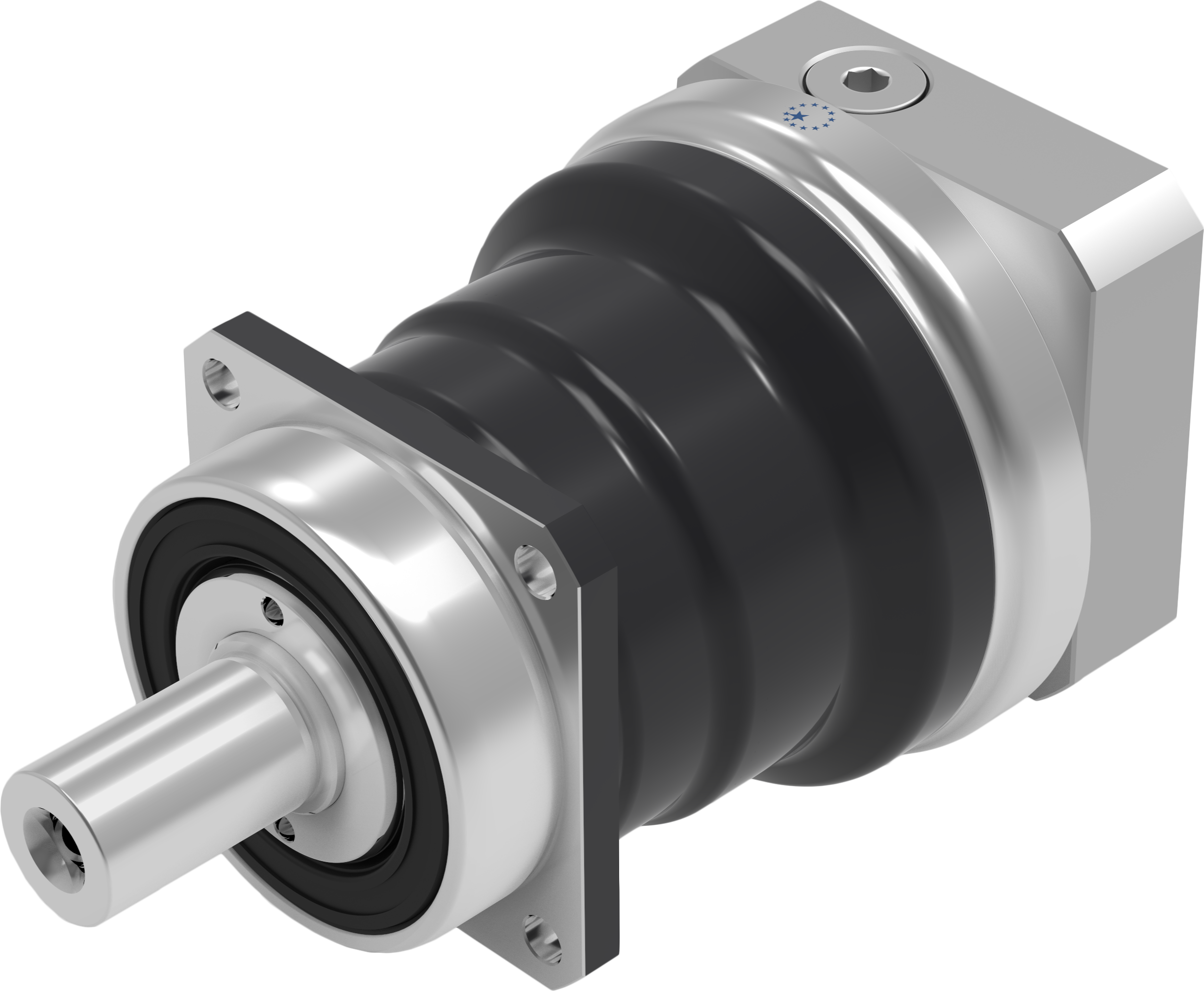

The Apex AFH series is an alloy steel high precision in line servo gearbox. A hardened and ground internal gear with 100% optimized helical case hardened and ground planet gears provide high torque capability, highest precision and increased wear resistance for high cycle rates. High Axial and Radial Loads provided by High Precision Taper Roller Bearings.

SKU: AFH Category: In-Line Planetary Gearboxes

Description

Output torque
T2N : 24 Nm – 4090 Nm

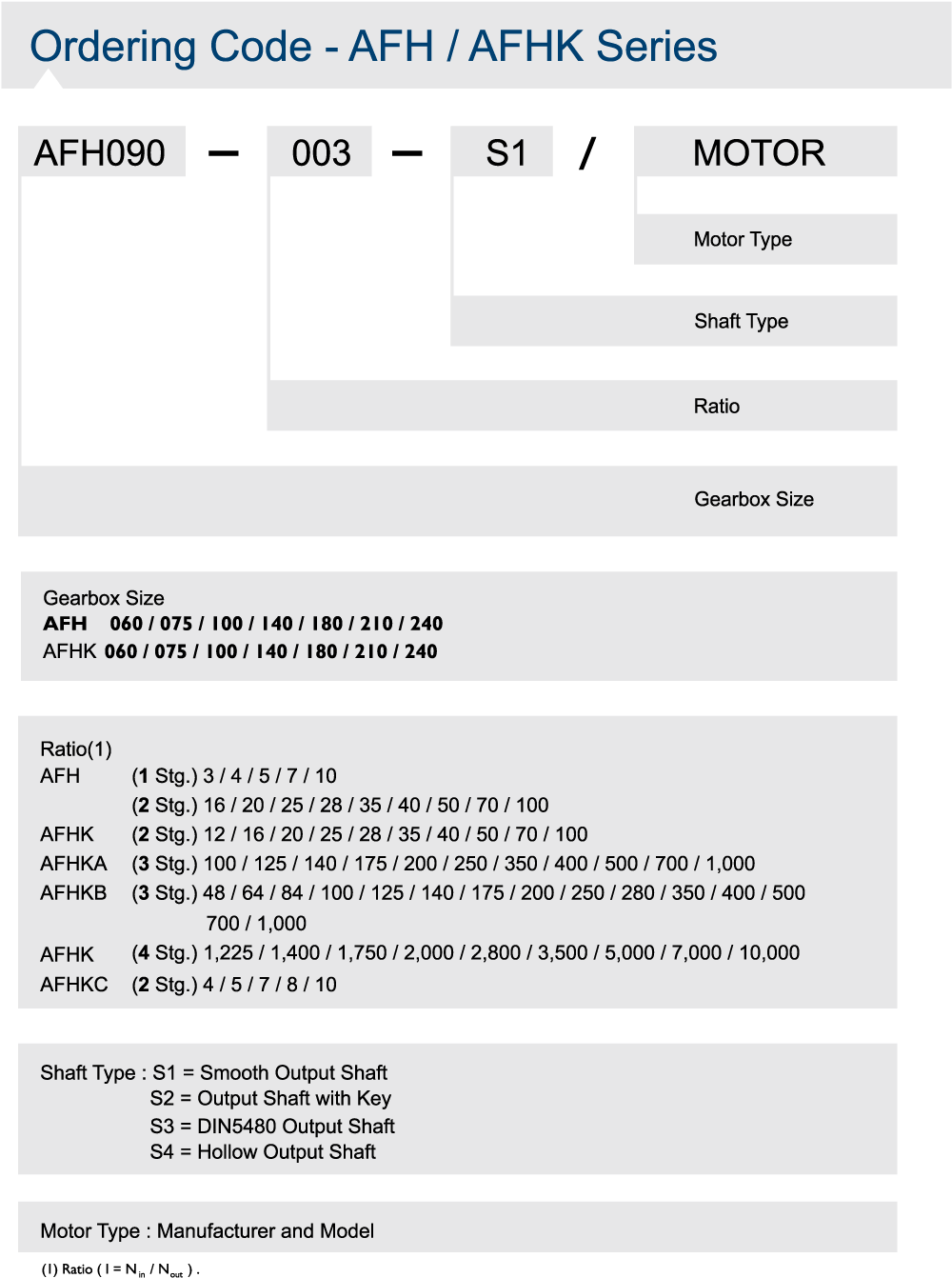

Ratios
1-stage : 3 / 4 / 5 / 6 / 7 / 10
2-stage : 16 / 20 / 25 / 28 / 35 / 40 / 50 / 70 / 100
60 / 70 / 80 / 90 / 100
Low backlash
1-stage : ≤1arcmin
2-stage : ≤2arcmin
High efficiency
1-stage : ≧ 97%
2-stage : ≧ 94%
Easy mount
Low Noise
Compact structure
