ABR-Series High Precision Planetary Gearboxes

$50.00

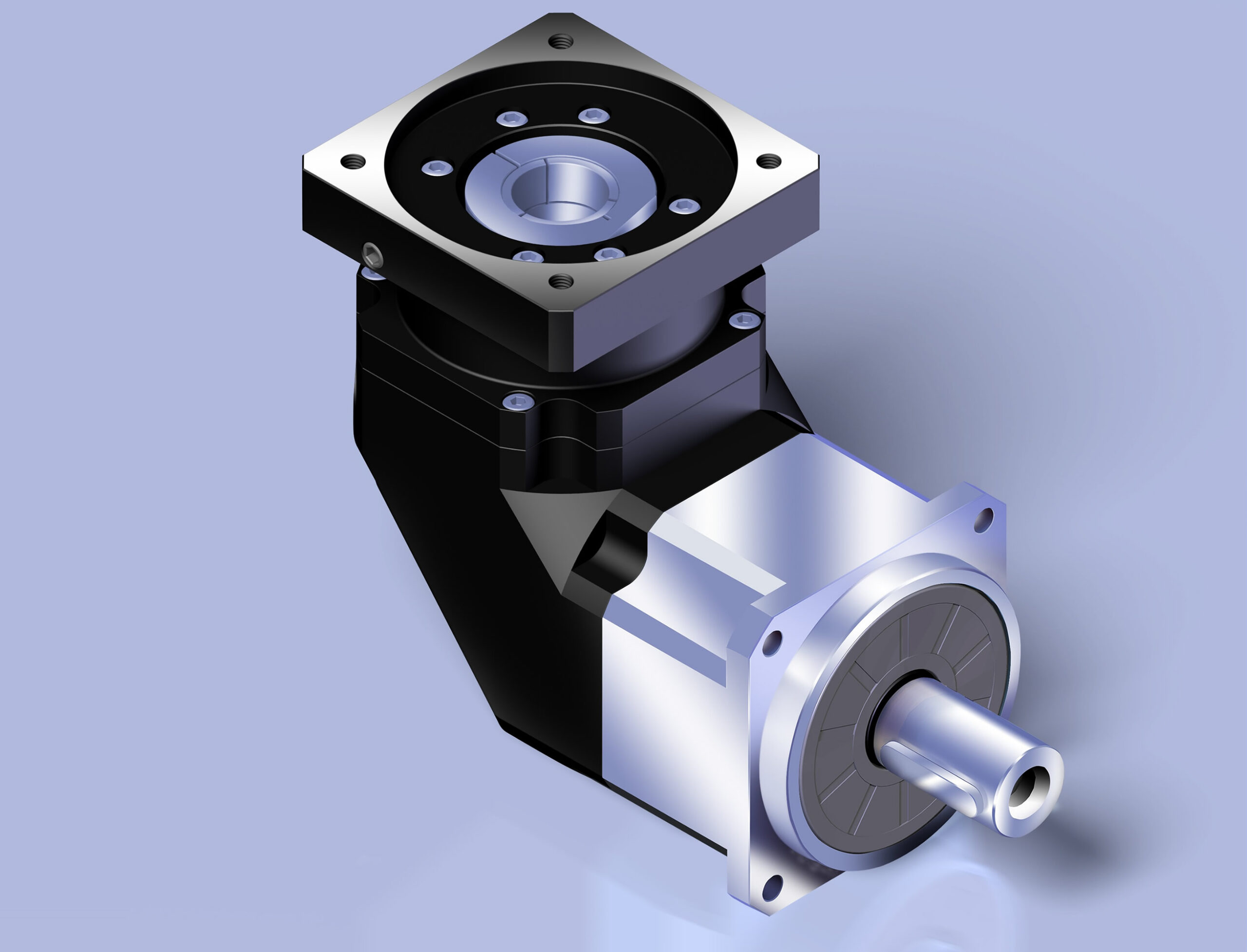

The Apex ABR series has a 90° input via helical bevel gear. It features an extremely short, light yet rigid housing and full compatibility with standard motor adapters. Highest Precision, Highest Torque and Quiet Operation are provided by 100% optimized Helical Gearing. Straddle Mounted High Precision Bearings Allow for High Radial and Axial Loads.

NEW! – Expanded Ratios -12/16/28/32/48/64 and Widened Mounting Capability with AFR100A and AFR140A

SKU: ABR Categories: In-Line Planetary Gearboxes, Right-Angle Planetary Gearboxes

Description

Overview

Output torque
T2N : 9 Nm – 2000 Nm
Ratios
1-stage :3/4/5/6/7/8/9/10/14/20
2-stage :
12/15/16/20/25/28/30/32/35/40/45/48/50/60/64/70
80/90/100/120/140/160/180/200*Only ABR042 2-stage offers 15,20 option.
Low backlash
1-stage : ≤2arcmin / ≤4arcmin / ≤6arcmin
2-stage : ≤4arcmin / ≤7arcmin / ≤9arcmin
high efficiency
1-stage :≧ 95%
2-stage :≧ 92%
Easy mount
Low Noise
