Name: GL-Series High Precision Planetary Gearboxes
SKU: GL-1
Price: 50.00 USD
Availability: InStock

GL-Series High Precision Planetary Gearboxes

GL-Series High Precision Planetary Gearboxes - Image 2

GL-Series High Precision Planetary Gearboxes - Image 3

GL-Series High Precision Planetary Gearboxes - Image 4

$50.00

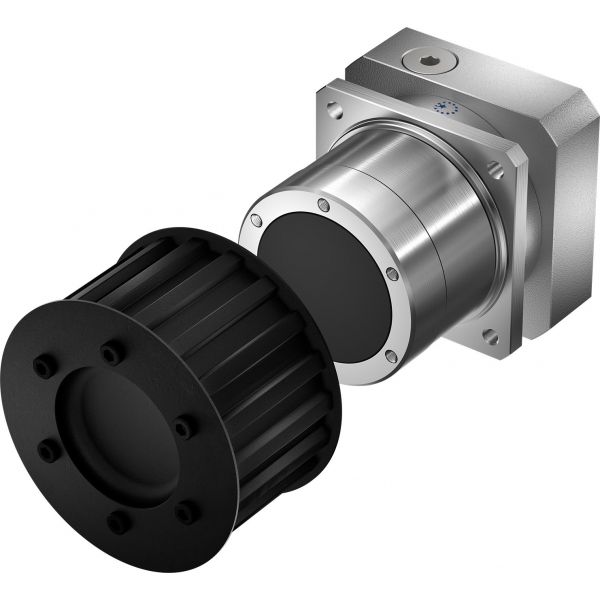

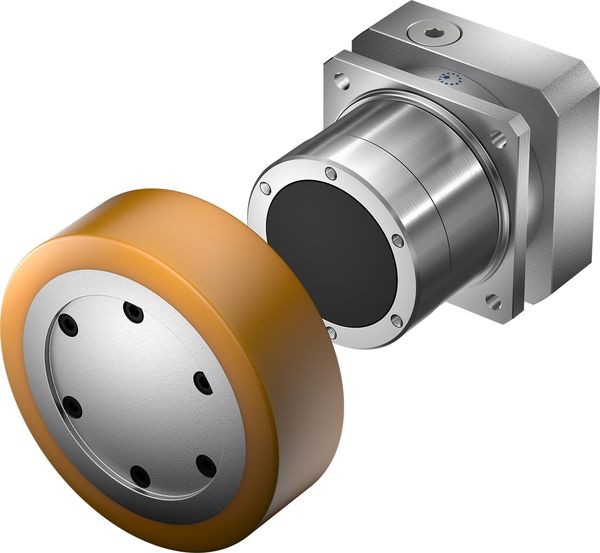

The Apex GL Series is a precision planetary gearbox designed for AGV applications. The unique rotary housing allows a drive wheel or pully to be mounted over the exterior, burying a large part of the gearbox in the wheel or pulley. The result is space savings in the robot or cart.

The GL is also available with a shaft input (GLS), which allows the gearbox to be driven by belt and pulley.

SKU: GL-1 Categories: Featured Products, In-Line Planetary Gearboxes

Description

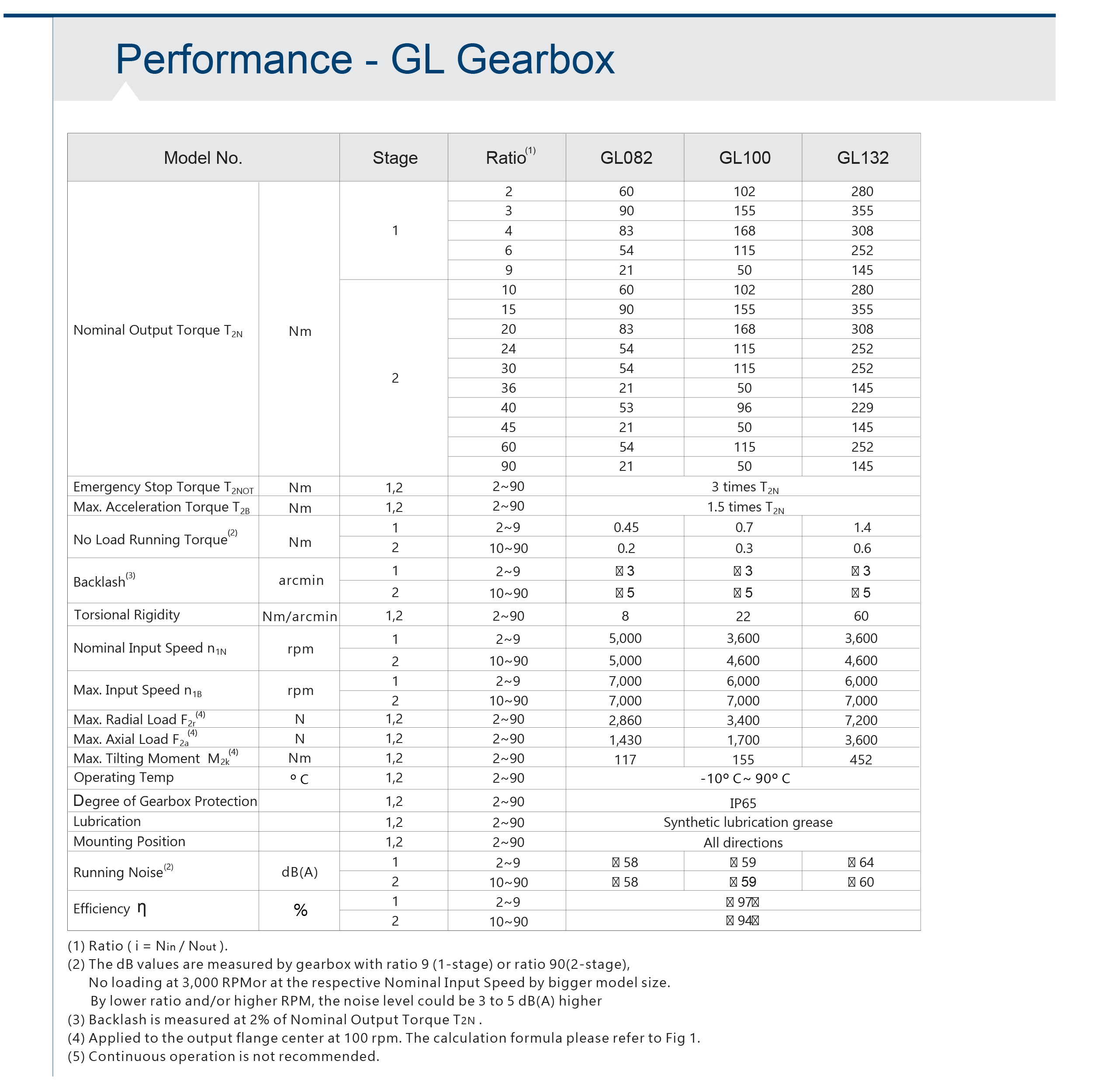

Output torque
T2N : 21 Nm – 355 Nm
Ratios
1-stage : 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9
2-stage : 10 / 15 / 20 /24 /30/ 36 / 40 / 45 / 60 / 90
Low backlash
1-stage : ≤3 arcmin
2-stage : ≤5 arcmin
high efficiency
1-stage : ≧ 97%
2-stage : ≧ 94%
High Speed
Low Noise
Compact structure
