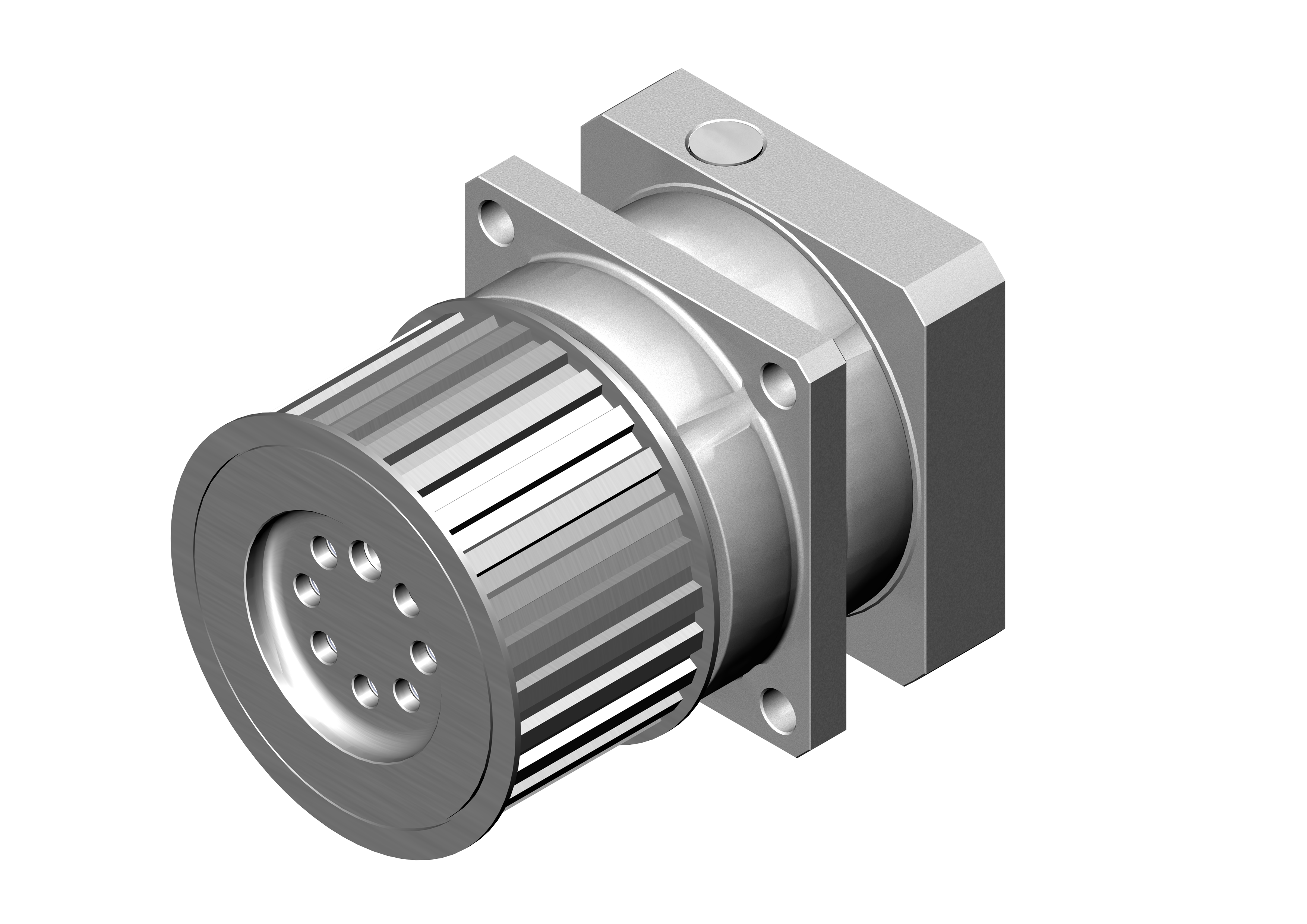

PL Series In Line Gearbox with Pulley

The all new PL Series planetary gearbox is a servo compatible straight cut planetary designed for belt and pulley applications.  A rotary output flange allows for the connection of a pulley that rides over the gear housing, that has a net effect of decreasing the length that the motor extends from the axis.

The PL Series features  a carbon steel rotary output flange that integrates directly to the belt drive pulley.  The planetary sections are housed in a carbon steel housing that has the internal gear machined directly in to it for greatest concentricity.  Full complement needle bearings provide the highest accuracy and rigidity through the gearbox. The aluminium input adapter housings allow for a wide range of motor sizes while keeping weight low.  Sealed bearings at the output and a labyrinth seal at the input keep solid and liquid contaminants out and e

Ronkonkoma, NY-

Apex Dynamics USA, announces the extension of its warranty coverage term to five years (60 months) from its original two years (24 months) for all PII series products.

PAII In Line Precision Planetary Gearbox

The change was driven by the optimizations implemented when the first release P Series was redesigned.  The improvements, enabled by the latest advanced production capabilities implemented at Apex Dynamics, have produced a gearbox more accurate, with lower friction, lower inertia, smoother and quieter operation, and decreased the size and weight.

"Based on the p

Full Stainless AE Series

Built for washdown environments, food handling, above food line, beverage - dairy, soft drink, beer, pharmaceutical , corrosive environments. The AE-SS series features high torque capacity
helical gearing, smooth, quiet operation, low backlash, high radial load capacity and continuous/high cycle rate capability.

The AE-SS series also includes Apex’s patented input bearing technology that perfectly centers the p

Specialty machinery for food grade and wash down equipment face a different set of environmental challenges. All components must be evaluated for where they are located on the machine, expectation of weather the component will come in to contact with any solids or liquids and what the solids or liquids will be - solids from products, liquids from products, wash down solutions, or combinations of all three.

Enter the Food Grade version of Apex Dynamics helical planetary gearboxes. The standard production helical gearboxes already feature stainless construction and IP65 environmental sealing. The upgrade to FE versions feature food grade grease with a white two part epoxy that is safe for food contact. Units are also available in FG versions that are the standard construction with food grade grease lubrication.

• Food grade compliant with white two part epoxy exterior.
• Food grade compatible lubricant - NYE670F. Nontoxic and
