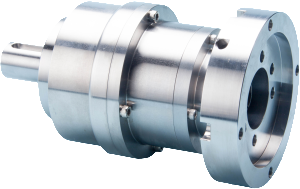

Full Stainless AE Series

Built for washdown environments, food handling, above food line, beverage - dairy, soft drink, beer, pharmaceutical , corrosive environments. The AE-SS series features high torque capacity
helical gearing, smooth, quiet operation, low backlash, high radial load capacity and continuous/high cycle rate capability.

The AE-SS series also includes Apex’s patented input bearing technology that perfectly centers the pinion, or sun gear, directly in the center of the planet gears. This ensures equal load sharing on each of the planet gears, driving better accuracy, smoother
quieter operation, lower torque ripple and lower transmission error, while increasing longevity and decreasing wear.

The range of stainless gearboxes that are available match existing stainless motor designs that are frequently used in applications, and have comparatively low average cost increase (~50%) over standard product.

• Stainless Output Shaft, housings, motor adapter and corrosion
resistant hardware.
• Food grade compatible lubricant - NYE670F. Nontoxic and
safe for food contact. Suitable for use on machinery and
instrumentation where incidental contact with food is a
possibility. NSF H-1 approved.
• IP 65 sealing. Double lipped, spring loaded Viton radial
shaft seals at input and output. Buna o-ring sealing between
all mating housings.
• IP 66 upgrade available
• Cylindrical design to eliminate flat surfaces.
• Motor adapter components stocked for common existing
stainless motors available on the market.

AVAILABLE COMBINATIONS

The following gearbox sizes and ratios are available in full stainless with food grade grease.

AE070       Single Stage        5:1, 10:1
AE090       Single Stage        3:1-10:1
AE090       Double Stage     15:1-100:1
AE120       Double Stage      15:1-100:1

APPLICATIONS
Washdown
Raw Food Processing
Dairy
Beverage
Meat, Fish and Poultry Processing
Hygenic
Cosmetic
Pharmaceutical
Caustic
Corrosive

For more information or assistance specifying a Full Stainless Steel gearhead, contact us at sales@apexdynamicsusa.com or call us at 631-244-9040

For more information on gearboxes and specifications, visit us at www.apexdynamicsusa.com
