KF-Series High Precision Planetary Gearboxes
Only 0 left
SKU
KF
Views: 1371
$50.00

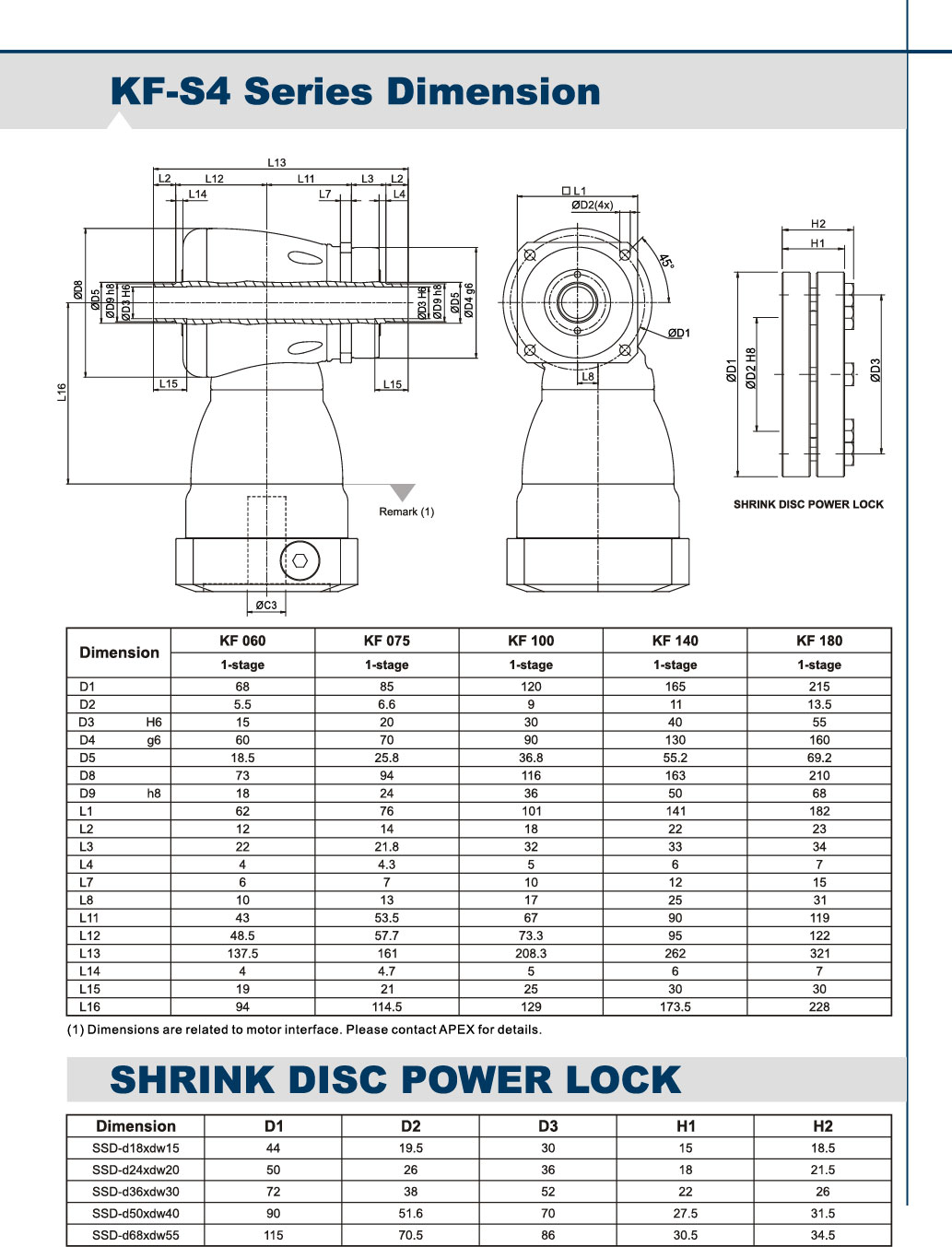

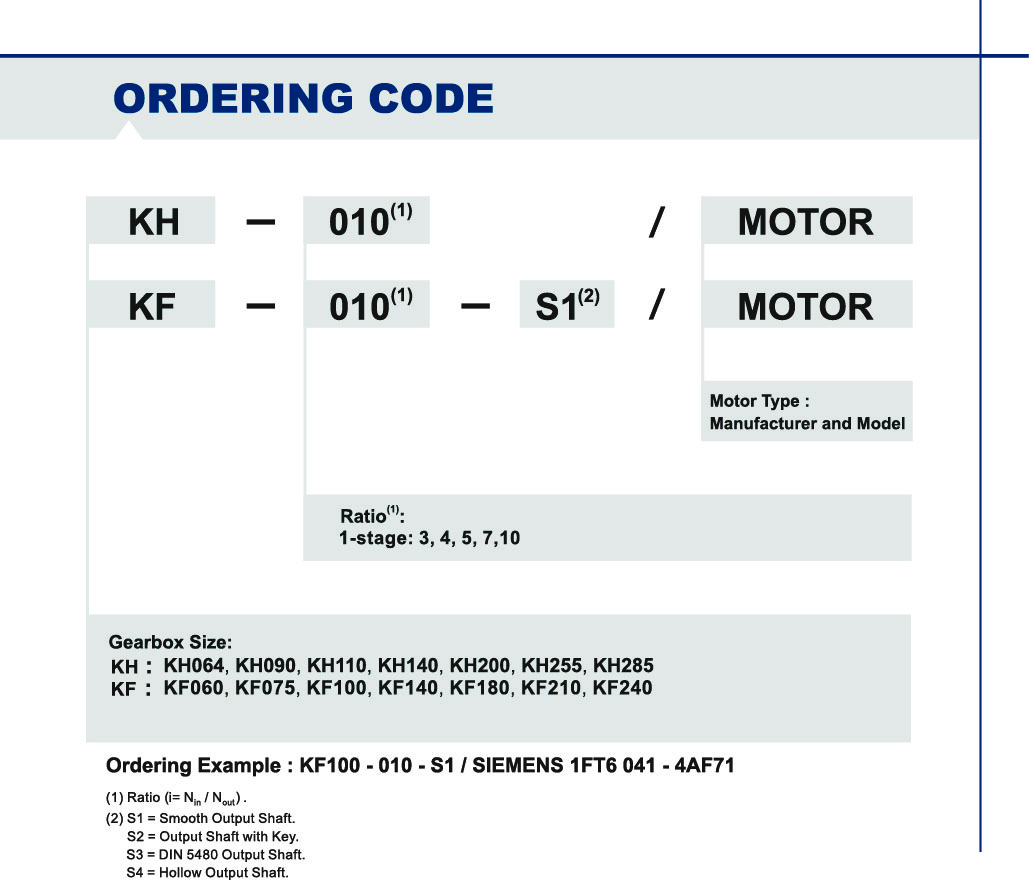

The Apex KF series has a 90° input via precision ground hypoid gear. It features an extremely short, light yet rigid housing and full compatibility with standard motor adapters. Highest Precision, Highest Torque and Quiet Operation are provided by optimized Hypoid Right Angle Gearing. High Axial and Radial Loads provided by High Precision Taper Roller Bearings. Available with Smooth Output Shaft (-S1), Keyed Output Shaft (-S2), DIN 5480 Output Spline (-S3) and Compression Clamp Hollow Shaft (-S4).

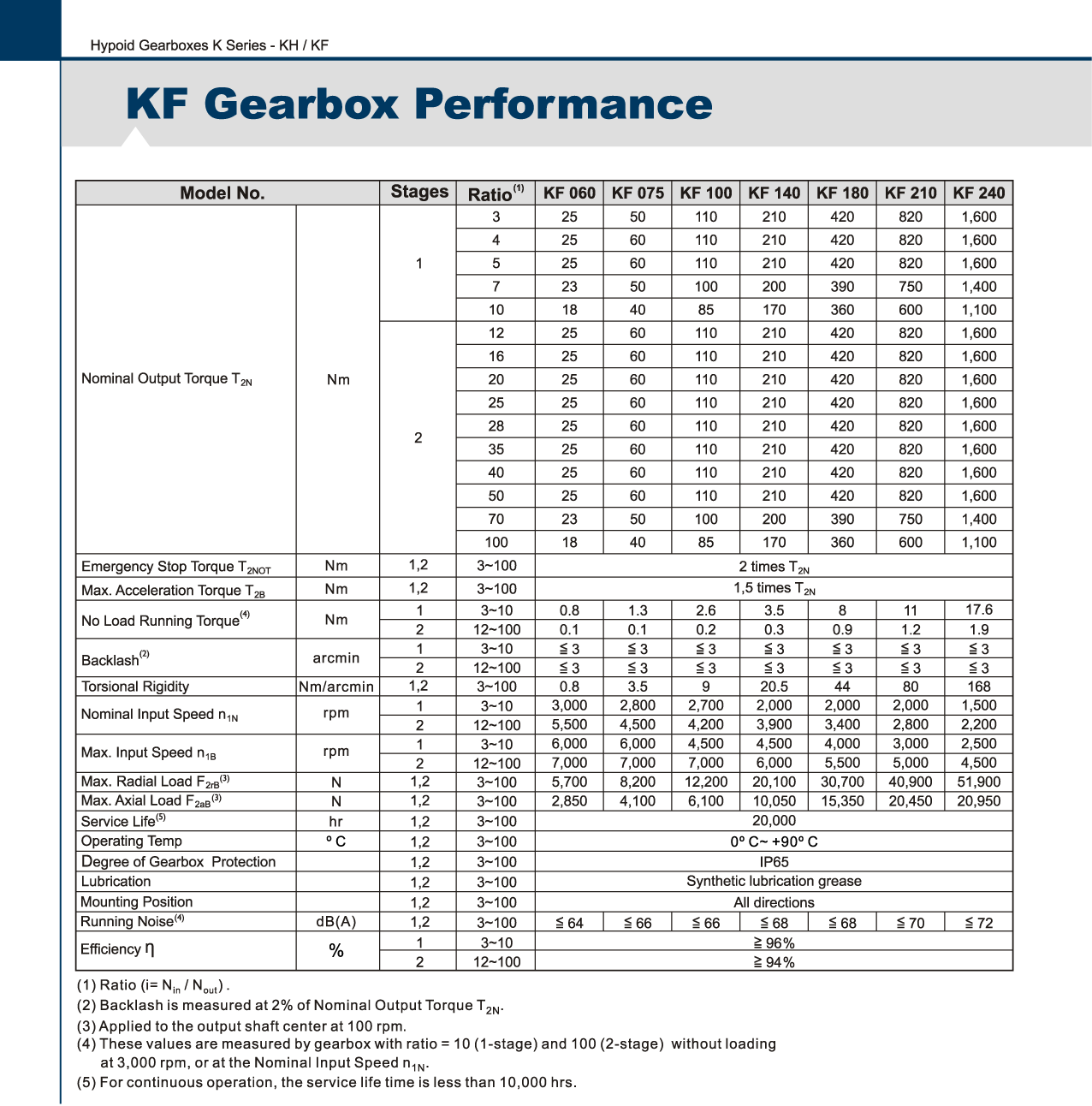

- Output Torque
T2N : 18 Nm - 1600 Nm
- Ratios
1-stage : 3 / 4 / 5 / 7 / 10
- Low Backlash
1-stage : ≤3 arcmin
- High Efficiency
1-stage : ≧ 96%
- Easy Mount
- Low Noise
- Compact Structure
